Slotted MDF Slat Wall

Availability: In Stock

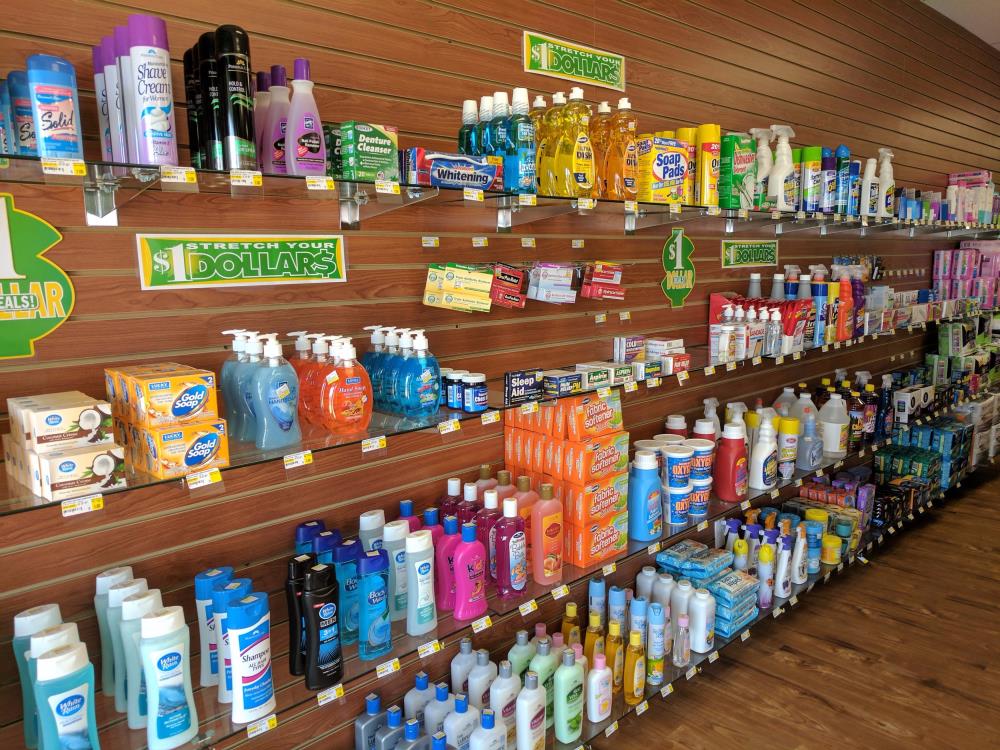

Designed for Shops & Trade Show DisplayThe product is light weight and easy to install which is what sets them apart from ordinary panels. These slat wall display panels can create a unique design using hooks, shelves, and bins. The panels are made from MDF material.

1220*2440mm Slatwall panels are available in 2 different orientations. You have them 2440mm high by 1220mm wide. This orientation is known as "Portrait" and will mean you have 23 slots each one spaced 100mm apart . The other orientation we can do is 1220mm high by 2440mm wide. This is known as"Landscape' and will give you 12 slots along the width each one 2440mm long

Category: Shelving Systems
Tags: Qatar - Fitout - Slatwall - Shelves - Display


We will help you to install, maintain or operate any of our products.

Send Inquiry Now

Our Sales Team is ready to reply to your inquiry.


We Provide warranty on all of our Products.

Product Info

The main features are:

  • -Product Name :  Slat wall Panel / Grooved board / Slotted MDF Board/Slatwall/Slot board.
  • -Size : 1220x2440mm (4'x8')
  • -Thickness : 15~25mm(+/-0.2mm)
  • -Face/Back : Plain or Melamine paper/Acrylic/Fireproof sheet faced (one side or both side faced).
  • -Surface Color : Wood grain color, solid color, customized colors and designs.
  • -Groove Distance :  150mm / 200mm / 300mm,or at your request.
  • -Groove Type : Rectangle, Ellipse, Trapezoid or as requested.
  • -Groove No. : 7~21 grooves or with one or two half grooves on the side at your request.
  • -Groove Direction : 1220mm direction or 2440mm direction.
  • -Inserts : Aluminium Alloy T-bar (0.5~1mm thickness) or PVC T-bar.
  • -Board Weight : 32-40kg per sheet.
